Demo of the IPython notebook at Sage Paris group meeting

06 mars 2014 | Catégories: ipython, sage | View Comments

Today I am presenting the IPython notebook at the meeting of the Sage Paris group. This post gathers what I prepared.

Installation

First you can install the ipython notebook in Sage as explained in this previous blog post. If everything works, then you run:

sage -ipython notebook

and this will open a browser.

Turn on Sage preparsing

Create a new notebook and type:

In [1]: 3 + 3
6
In [2]: 2 / 3
0
In [3]: matrix
Traceback (most recent call last):
...
NameError: name 'matrix' is not defined

By default, Sage preparsing is turn off and Sage commands are not known. To turn on the Sage preparsing (thanks to a post of Jason on sage-devel):

%load_ext sage.misc.sage_extension

Since sage-6.2, according to sage-devel, the command is:

%load_ext sage

You now get Sage commands working in ipython:

In [4]: 3 + 4
Out[4]: 7
In [5]: 2 / 3
Out[5]: 2/3
In [6]: type(_)
Out[6]: <type 'sage.rings.rational.Rational'>
In [7]: matrix(3, range(9))
Out[7]:
[0 1 2]
[3 4 5]
[6 7 8]

Scroll and hide output

If the output is too big, click on Out to scroll or hide the output:

In [8]: range(1000)

Sage 3d Graphics

3D graphics works but open in a new Jmol window:

In [9]: sphere()

Sage 2d Graphics

Similarly, 2D graphics works but open in a new window:

In [10]: plot(sin(x), (x,0,10))

Inline Matplotlib graphics

To create inline matplotlib graphics, the notebook must be started with this command:

sage -ipython notebook --pylab=inline

Then, a matplotlib plot can be drawn inline (example taken from this notebook):

import matplotlib.pyplot as plt
import numpy as np
x = np.linspace(0, 3*np.pi, 500)
plt.plot(x, np.sin(x**2))
plt.title('A simple chirp');

Or with:

%load http://matplotlib.org/mpl_examples/showcase/integral_demo.py

According to the previous cited notebook, it seems, that the inline mode can also be decided from the notebook using a magic command, but with my version of ipython (0.13.2), I get an error:

In [11]: %matplotlib inline
ERROR: Line magic function `%matplotlib` not found.

Use latex in a markdown cell

Change an input cell into a markdown cell and then you may use latex:

Test $\alpha+\beta+\gamma$

Output in latex

The output can be shown with latex and mathjax using the ipython display function:

from IPython.display import display, Math
def my_show(obj): return display(Math(latex(obj)))
y = 1 / (x^2+1)
my_show(y)

ipynb format

Create a new notebook with only one cell. Name it range_10 and save:

In [1]: range(10)
Out[1]: [0, 1, 2, 3, 4, 5, 6, 7, 8, 9]

The file range_10.ipynb is saved in the directory. You can also download it from File > Download as > IPython (.ipynb). Here is the content of the file range_10.ipynb:

{
 "metadata": {
  "name": "range_10"
 },
 "nbformat": 3,
 "nbformat_minor": 0,
 "worksheets": [
  {
   "cells": [
    {
     "cell_type": "code",
     "collapsed": false,
     "input": [
      "range(10)"
     ],
     "language": "python",
     "metadata": {},
     "outputs": [
      {
       "output_type": "pyout",
       "prompt_number": 1,
       "text": [
        "[0, 1, 2, 3, 4, 5, 6, 7, 8, 9]"
       ]
      }
     ],
     "prompt_number": 1
    },
    {
     "cell_type": "code",
     "collapsed": false,
     "input": [],
     "language": "python",
     "metadata": {},
     "outputs": []
    }
   ],
   "metadata": {}
  }
 ]
}

ipynb is just json

A ipynb file is written in json format. Below, we use json to open the file `range_10.ipynb as a Python dictionnary.

sage: s = open('range_10.ipynb','r').read()
sage: import json
sage: D = json.loads(s)
sage: type(D)
dict
sage: D.keys()
[u'nbformat', u'nbformat_minor', u'worksheets', u'metadata']
sage: D
{u'metadata': {u'name': u'range_10'},
 u'nbformat': 3,
 u'nbformat_minor': 0,
 u'worksheets': [{u'cells': [{u'cell_type': u'code',
     u'collapsed': False,
     u'input': [u'range(10)'],
     u'language': u'python',
     u'metadata': {},
     u'outputs': [{u'output_type': u'pyout',
       u'prompt_number': 1,
       u'text': [u'[0, 1, 2, 3, 4, 5, 6, 7, 8, 9]']}],
     u'prompt_number': 1},
    {u'cell_type': u'code',
     u'collapsed': False,
     u'input': [],
     u'language': u'python',
     u'metadata': {},
     u'outputs': []}],
   u'metadata': {}}]}

Load vaucanson.ipynb

Download the file vaucanson.ipynb from the last meeting of Paris Sage Users. You can view the complete demo including pictures of automaton even if you are not able to install vaucanson on your machine.

IPython notebook from a Python file

In a Python file, separate your code with the following line to create cells:

# <codecell>

For example, create the following Python file. Then, import it in the notebook. It will get translated to ipynb format automatically.

# -*- coding: utf-8 -*-
# <nbformat>3.0</nbformat>

# <codecell>

%load_ext sage.misc.sage_extension

# <codecell>

matrix(4, range(16))

# <codecell>

factor(2^40-1)

More conversion

Since release 1.0 of IPython, many conversion from ipynb to other format are possible (html, latex, slides, markdown, rst, python). Unfortunately, the version of IPython in Sage is still 0.13.2 as of today but the version 1.2.1 will be in sage-6.2.

Read and Post Comments

Ranking algorithms for competitive Ultimate

02 mars 2014 | Mise à jour: 26 mars 2014 | Catégories: ultimate | View Comments

Ranking teams is a great question. There can be a lot of mathematics and complicated computations involved. The ranking algorithm used by USAUltimate is not an exception. Taking as huge input the results of thousands of games played during a season, it outputs a ranking of teams. Recently, USA Ultimate annonced modifications to their ranking algorithm for the 2014 Season which I see as local changes keeping the same global approach. I quickly shared my thoughts on ultiworld recently. Then, I was asked to explain my ideas more deeply which I do in this text.

I believe the actual USA ranking algorithm is not too bad at fullfilling its objective: decide bids per region. Once the number of bids are set, the season results and the USA ranking has no impact anymore on deciding which team is the best. The best team will be the team who wons the nationals after qualifying through sectionals and regionals. But depending on the objective to achieve, the choice of ranking algorithm can be more important as its role is more determinant:

Role A. Rank the teams at all time of the year (like tennis ATP and WTA rankings)
Role B. Choose the Season Champion (like in Formula 1)
Role C. Select teams for a Championship (Quebec Ultimate 4 on 4 Circuit)
Role D. Decide bids per region (USAU)

Depending on the role of the ranking, the chosen ranking algorithm might be more or less suited. In this text, I explain my point of view on ranking algorithms for competitive Ultimate. I consider the case where the season is made of many tournaments and where the ranking has a role in deciding the national champion, that is like role B or C above. It may also apply for deciding bids per region (role D). But whatever its role, to me, a good ranking algorithm for competitive Ultimate must:

  1. Produce a ranking
  2. Consider the structure of tournaments (not every game worth the same)
  3. Be predictable
  4. Reward what is the most valuable (winning when it counts)

Below, I explain each of the above condition. I also propose a ranking algorithm for competitive ultimate based on results of tournaments. This text ends with an example on 2013 Club Open season to see how my proposed ranking would work for bid allocation in USA Ultimate. In general, I hope my text can stimulate a reflexion about what algorithm is best suited for competitive ultimate.

1. Produce a ranking

Of course, the ranking algorithm should produce a overall ranking of teams. Everybody agrees with this.

2. Consider the structure of tournaments (not every game worth the same)

To me the principal weekness of the actual USAU Ranking algorithm is that it doesn't see the structure of tournaments. The algorithm can be great for a league or whatever sport where games are worth the same but not for competitive Ultimate where games are played during tournaments. For the algorithm used by USAU, a tournament is just a bunch of random games. The algorithm does not see the difference between the saturday morning game and the sunday afternoon final (apart the one day difference which won't affect much).

The following paradox illustrates how the results of games in a tournament is completely independent of the outcome of the tournament itself. Four teams (A, B, C and D) play in a tournament. The format is a round robin followed by semi-finals, final and 3rd place game: 10 games all in all. The results are (in no particular order):

  • game #0: (15) A - C (7)
  • game #1: (15) B - D (6)
  • game #2: (15) A - D (8)
  • game #3: (15) B - C (10)
  • game #4: (15) A - B (12)
  • game #5: (15) C - D (9)
  • game #6: (12) A - D (15)
  • game #7: (7) B - C (15)
  • game #8: (8) A - B (15)
  • game #9: (9) C - D (15)

From this information only, can you decide which team won the tournament? The answer is NO. If games #0, #1, #2, #3, #4, #5 are pool play games, then the seeding out of pool play is A(3-0), B(2-1), C(1-2), D(0-3). Games #6 and #7 are the semis, game #8 is the 3rd place game and game #9 is the final. Team D win the tournament. Final standing is D-C-B-A.

If games #0,#1,#6,#7,#8,#9 are played in the pool, then the pool outcome becomes B(2-1), D(2-1), A(1-2), C(1-2). Team B and C play in semi final game #3 while Team A and D play their semi in game #2. The final game is game #4. The 3rd place is game #5. Team A win the tournament. Final standing is A-B-C-D.

After the tournament, we can discuss about what should be the proper ranking of those four teams based on the results of the 10 games they played. But, there are good chances that we are just wrong as the above paradox shows. In a tournament all games are not equal. It is all about the context. A good ranking algorithm should consider the format of tournaments and accept that some games worth more than others. How to do this? The actual algorithm is already very complicated. How to put more value to particular games? Maybe possible, but may be complicated as well.

I believe there is an easy solution to this. The algorithm must take a step back. Looking at games is like looking at the microscope: we don't see the global picture. Which team get the trophy at the end of the tournament in front of everyone without contestation from anybody? The trophy is given at the end of the tournament to the team who reached the final and won it. This is the best team. The best team is not the one who got the best overall game results. This is why I believe ranking algorithm in competitive Ultimate should be based on the outcome of tournaments and not on the outcome of games.

3. Be predictable

In a text by Lou Burruss about ranking published during 2012, the author speak about the recursive aspect of the actual ranking algorithm making it unpredictable:

"In conversation with Sholom, he made clear there is still some mystery to this very complex process. Even after 20 years of official rankings and simulations, it is impossible to predict exactly how things will behave."

On the contrary, if the ranking system is predictable, then teams know in advance that winning a certain game will give them exactly 200 pts, let's say, and this is the amount they need to become #1 in the country, then it will be one more motivation to win the game.

This is when ranking is not anymore only about ranking. Ranking can also be a source of motivation for team to improve. But ranking will do this at its best when it is predictable. This is why I believe USA Ultimate should look into this if they want to enhance the level of competition as they claim:

"In the ongoing effort to enhance the level of competition and achieve organizational goals, USA Ultimate continues to look to improve the ranking algorithm [...]."

4. Reward what is the most valuable (winning when it counts)

In my opinion, ranking should reward what is the most valuable by the community. This should correspond to what is the most difficult to achieve. Again, this point is a necessary condition for the ranking to be used as a source of motivation for team to improve.

If a ranking values something else, then people won't value the ranking and team won't try to improve themselve to get a better ranking. For example, think about a ranking that would only consider the best differential. We all know that the best differential in a tournament can be reached by the team G who finishes 7th out of 16 teams. The team G will think they are the best in the country and they won't try to win a tournament : too much effort and useless. The team A who put all the effort to get to the final and win it will wonder if they are optimizing the good thing. They will be less motivated to win another tournament.

Naturally, the community values teams getting in the final and winning it. This is what I call the natural attractor. The ranking algorithm chosen also defines a ranking attractor. As we have seen in the last paragraph, the two attractors can be different. But, I strongly believe the best choice of ranking algorithm is when syzygy (picture here) happens, that is when the ranking attractor equals the natural attractor.

"The syzygy produces the more powerful spring tide due to the enhanced gravitational effect of the Sun added to the Moon's gravitational pull."

In this situation, the natural attractors and the ranking attractor double their forces and team then really wants to win tournaments because they get the natural recognition from the community plus they get an high rank in the official ranking. This is the best way to optimize the improvement of teams.

It is known that the actual ranking algorithm encourages teams to play a bit differently than they would if it was just about winning tournaments. In Maximizing Your Team’s Ranking: Strength of Schedule or Margin of Victory? (Dec. 2013), Scott Schriner confirms this. He wrote:

"To increase your game performance score, you will want to win more games — but also win each game by as large of a margin as possible. This might include playing your starters longer than necessary, or loading up your D Line with an O Line handler even if you don’t need that break. Of course that decision carries with it other tradeoffs: you may increase injury risk or stall the development of younger players on your team."

I believe it is a mark of respect for tournament structure that the ranking attractor correspond to the the natural attractor. Moreover, this system is trusting teams and let them all the liberty they need to win a tournament. Good team will peak at the good moment and will try new strategies or give more playing time to rookies at other moment. Teams that try to optimize every point at every game do not improve and do not push the game further.

A ranking system for competitive Ultimate

There is a important observation to be made when creating overall ranking in competitive ultimate. The output of a tournament is a ranking of teams. Why not build on this to create overall ranking? A natural system is to give points to teams according to the final ranking. In such a system, teams needs to win tournaments to get the maximal amount of points.

I think a system like tennis ATP and WTA ranking is a good inspiration for competitive ultimate. Tennis players go to tournaments they choose. Some tournaments worth more (Grand Slam) some less (ATP World Tour Masters 1000, ATP 500, ATP 250). The number of points of a tennis player is the sum of its best 18 results.

The problem with tennis compared to Ultimate is that there are no placement games. The outcome of a tennis tournament is that you either win the final, made the final, made the semis, made the quarters, made the round of 16, and so on. In Ultimate, there are placement games and finishing 9th is better than finishing 16th. Also, 18 tournaments is a lot. We need to consider less tournaments.

Since 2007, in Quebec we adapted the ATP ranking to Ultimate tournaments with placement games. In 2011, the series became so popular. We needed to adjust the system (88 teams took part in the Mars Attaque 2011 but only 32 got points). Since 2011, 1000 pts is given to the winner of a Grand Slam event, 938 pts is given to the finalist, 884 pts is given to the 3rd place, 835 pts to the 4th place and this goes until the team finishing in 50th place who obtain 1pt. The number of points is obtained from the integral of a logarithmic function. I am going to write another text on my blog where I explain the details and the math behind the system.

Example : ranking of USA Open Club team during 2013 regular season

As an example I am considering the 2013 USA Club Open seaon. I selected the following list of 14 tournaments. Those tournaments are divided into 2 groups (7 tournaments of 500 points, 7 elite tournaments of 1000 points).

Tournaments considered Points for champion
Cal State 500
Cazenovia 500
No Surf 500
Old Dominion Q. 500
Mot. Throwdown 500
San Diego Slammer 500
Col. Cup noTCT 500
Chesapeake Invite 1000
Club Terminus 1000
Colorado Cup 1000
Heavyweights 1000
Pro Flight Finale 1000
US Open 1000
West Coast Cup 1000

Below is the resulting ranking made from the 2013 USA Club Open season with the parameters chosen above. Comments are welcome.

  Pos   Pts    Team name                     Rg   Best                         2nd best                     3rd best
+-----+------+-----------------------------+----+----------------------------+----------------------------+----------------------------+
  1     2746    Doublewide                   SC   1 (1000) Colorado Cup        2 (911) Pro Flight Finale    3 (835) US Open
  2     2670    PoNY                         NE   1 (1000) Club Terminus       3 (835) Colorado Cup         3 (835) Chesapeake Invite
  3     2619    Revolver                     SW   1 (1000) US Open             2 (911) West Coast Cup       5 (708) Pro Flight Finale
  4     2603    Sockeye                      NW   1 (1000) West Coast Cup      3 (835) Club Terminus        4 (768) Pro Flight Finale
  5     2603    Machine                      GL   1 (1000) Heavyweights        3 (835) Pro Flight Finale    4 (768) Club Terminus
  6     2387    Johnny Bravo                 SC   2 (911) Colorado Cup         4 (768) West Coast Cup       5 (708) Club Terminus
  7     2377    Ironside                     NE   2 (911) US Open              2 (911) Chesapeake Invite    8 (555) Pro Flight Finale
  8     2361    GOAT                         NE   1 (1000) Pro Flight Finale   5 (708) Chesapeake Invite    6 (653) Club Terminus
  9     2166    Chain Lightning              SE   2 (911) Club Terminus        6 (653) Chesapeake Invite    7 (602) Pro Flight Finale
  10    2140    Sub Zero                     NC   1 (1000) Chesapeake Invite   5 (708) Heavyweights         11 (432) Club Terminus
  11    2043    Ring of Fire                 SE   3 (835) US Open              6 (653) Pro Flight Finale    8 (555) Chesapeake Invite
  12    1937    High Five                    GL   3 (835) Heavyweights         7 (602) Chesapeake Invite    1 (500) No Surf
  13    1927    Rhino                        NW   5 (708) Colorado Cup         5 (708) West Coast Cup       9 (511) Club Terminus
  14    1910    Madison Club                 NC   2 (911) Heavyweights         7 (602) Colorado Cup         12 (397) Club Terminus
  15    1881    Truck Stop                   MA   4 (768) Colorado Cup         7 (602) Club Terminus        9 (511) Chesapeake Invite
  16    1685    Inception                    SC   4 (768) Heavyweights         1 (500) Col. Cup noTCT       3 (417) San Diego Slammer
  17    1492    Streetgang                   SW   6 (653) Heavyweights         2 (455) San Diego Slammer    4 (384) Cal State
  18    1455    Chicago Club                 GL   5 (708) US Open              4 (384) Mot. Throwdown       13 (363) Heavyweights
  19    1340    LA Renegade                  SW   7 (602) Heavyweights         4 (384) Cal State            5 (354) San Diego Slammer
  20    1302    Condors                      SW   1 (500) Cal State            1 (500) San Diego Slammer    15 (302) Colorado Cup
  21    1284    Madcow                       GL   2 (455) Mot. Throwdown       11 (432) Colorado Cup        12 (397) Chesapeake Invite
  22    1252    Cash Crop                    SE   10 (471) Chesapeake Invite   12 (397) Colorado Cup        4 (384) Old Dominion Q.
  23    1087    Dire Wolf                    MA   2 (455) No Surf              4 (384) Cazenovia            17 (248) Heavyweights
  24    1085    Prairie Fire                 NC   6 (653) Colorado Cup         11 (432) Heavyweights
  25    1011    Florida United               SE   9 (511) Colorado Cup         1 (500) Old Dominion Q.
  26    1010    Boost Mobile                 SW   8 (555) Club Terminus        2 (455) Cal State
  27    1007    Medicine Men                 MA   12 (397) Heavyweights        5 (354) Old Dominion Q.      9 (256) Cazenovia
  28    986     Mephisto                     NE   7 (602) US Open              4 (384) Cazenovia
  29    888     Voodoo                       NW   10 (471) Colorado Cup        3 (417) San Diego Slammer
  30    865     Sprawl                       SW   9 (511) Heavyweights         5 (354) San Diego Slammer
  31    835     Buzz Bullets                      3 (835) West Coast Cup
  32    833     Garuda                       NE   8 (555) Heavyweights         8 (278) Cazenovia
  33    768     Clapham                           4 (768) Chesapeake Invite
  34    686     Oaks                         SW   5 (354) Cal State            14 (332) Heavyweights
  35    656     Castle                       NC   5 (354) Mot. Throwdown       15 (302) Heavyweights
  36    653     Euforia                           6 (653) US Open
  37    632     Sheet Metal                       5 (354) No Surf              8 (278) Cazenovia
  38    594     Beachfront Property          GL   3 (417) Mot. Throwdown       20 (177) Heavyweights
  39    575     Space City Ignite            SC   7 (301) San Diego Slammer    16 (274) Heavyweights
  40    562     Chico                             6 (326) Cal State            10 (236) San Diego Slammer
  41    555     Plex                         SC   8 (555) Colorado Cup
  42    555     Ragnarok                          8 (555) US Open
  43    534     Gridlock                     SW   8 (278) Cal State            9 (256) San Diego Slammer
  44    500     Ulysse                            1 (500) Cazenovia
  45    471     Brickyard                    GL   10 (471) Heavyweights
  46    471     Furious George               NW   10 (471) Club Terminus
  47    467     Midnight Meat Train          GL   7 (301) No Surf              14 (166) Mot. Throwdown
  48    458     Lake Effect                  GL   7 (301) Mot. Throwdown       21 (157) Heavyweights
  49    455     Tanasi                       SE   2 (455) Old Dominion Q.
  50    455     Powderhogs                   NW   2 (455) Col. Cup noTCT
  51    453     Madador                           10 (236) No Surf             11 (217) Mot. Throwdown
  52    435     BD Air Show                  SW   10 (236) Cal State           12 (199) San Diego Slammer
  53    432     Oakland                      MA   11 (432) Chesapeake Invite
  54    417     Boneyard                          3 (417) Old Dominion Q.
  55    417     Choice City Hops                  3 (417) Col. Cup noTCT
  56    417     Madcow Y                          3 (417) No Surf
  57    405     Inception-Red                     4 (384) Col. Cup noTCT       30 (21) Heavyweights
  58    399     CAKti                             11 (217) No Surf             13 (182) Mot. Throwdown
  59    384     Madcow X                          4 (384) No Surf
  60    363     Phoenix                      NE   13 (363) Colorado Cup
  61    354     Sweet Roll                   SC   5 (354) Col. Cup noTCT
  62    354     The Nights Watch             NE   5 (354) Cazenovia
  63    326     Grand Trunk                       6 (326) No Surf
  64    326     Vanier Wildcats                   6 (326) Cazenovia
  65    326     Floodwall                         6 (326) Old Dominion Q.
  66    326     Enigma                       GL   6 (326) Mot. Throwdown
  67    301     The Ghosts                        7 (301) San Diego Slammer
  68    301     Swell                             7 (301) Old Dominion Q.
  69    278     Old Growth                        8 (278) Cal State
  70    278     Burnside                          8 (278) Old Dominion Q.
  71    278     Jurassic Shark               GL   8 (278) Mot. Throwdown
  72    278     Maverick                          8 (278) No Surf
  73    274     Lancaster                    MA   16 (274) Colorado Cup
  74    256     Journeymen                        9 (256) Cal State
  75    256     Grantham U.                       9 (256) No Surf
  76    256     VAlhalla                          9 (256) Old Dominion Q.
  77    256     Impulse                           9 (256) Mot. Throwdown
  78    237     Hustle                            10 (236) Mot. Throwdown      32 (1) Heavyweights
  79    236     Triforce                          10 (236) Old Dominion Q.
  80    236     Jester                            10 (236) Cazenovia
  81    231     Spoiler                           12 (199) Mot. Throwdown      29 (32) Heavyweights
  82    223     Haymaker                     GL   18 (223) Heavyweights
  83    217     Brawl                        SW   11 (217) San Diego Slammer
  84    199     ROY                               12 (199) No Surf
  85    199     Centretown Gunners                12 (199) Cazenovia
  86    199     Warriors of Rad                   12 (199) Cazenovia
  87    199     Gnarwhal                     NC   19 (199) Heavyweights
  88    194     INfamous                          16 (137) Mot. Throwdown      27 (57) Heavyweights
  89    182     Stonefish                    NE   13 (182) Cazenovia
  90    166     Youngbloods                  NE   14 (166) Cazenovia
  91    151     Flying Pig                        15 (151) Mot. Throwdown
  92    137     Freaks Uv Nature             SE   22 (137) Heavyweights
  93    137     Firebird                          16 (137) Cazenovia
  94    137     Throw'n Together                  16 (137) Cazenovia
  95    134     Illusion                     NC   17 (124) Mot. Throwdown      31 (10) Heavyweights
  96    119     Mufasa                            23 (119) Heavyweights
  97    112     MicroMachines                     18 (112) Mot. Throwdown
  98    102     Mad Men                           24 (102) Heavyweights
  99    100     Rust Belt War Bonds               19 (100) Mot. Throwdown
  100   89      Salvage 3                         20 (89) Mot. Throwdown
  101   86      H1N1                         NC   25 (86) Heavyweights
  102   71      yogosbo                           26 (71) Heavyweights
  103   44      City Park Ultimate           NC   28 (44) Heavyweights

Suppose such a ranking was used for bid allocation in USA. The next table compares the number of bid that were allocated per region for the USAU Championshipwith with the number of teams per region in the top 16 of the above ranking.

Region Total bid allocated Teams in top 16
GL 2 2
MA 1 1
NC 1 2 (+1)
NE 3 3
NW 2 2
SC 2 3 (+1)
SE 3 2 (-1)
SW 2 1 (-1)

Of course, the relative number of points for tournaments is important. It must be well studied and tested to reach the good equilibrium. For example, maybe 400 or 600 points is best suited for second level tournaments instead of 500.

Read and Post Comments

Dessins et calculs d'orbites avec Sage d'une fonction associée à l'algo LLL

04 février 2014 | Catégories: sage | View Comments

Aujourd'hui avait lieu une rencontre de l'ANR DynA3S. Suite à une présentation de Brigitte Vallée, j'ai codé quelques lignes en Sage pour étudier une fonction qu'elle a introduite. Cette fonction est reliée à la compréhension de la densité des termes sous-diagonaux dans l'exécution de l'algorithme LLL.

D'abord voici mon fichier: brigitte.sage.

Pour utiliser ce fichier, il faut d'abord l'importer dans Sage en utilisant la commande suivante. En ligne de commande, ça fonctionne bien. Dans le Sage notebook, je ne sais plus trop si la commande load permet encore de le faire (?):

sage: %runfile brigitte.sage       # not tested

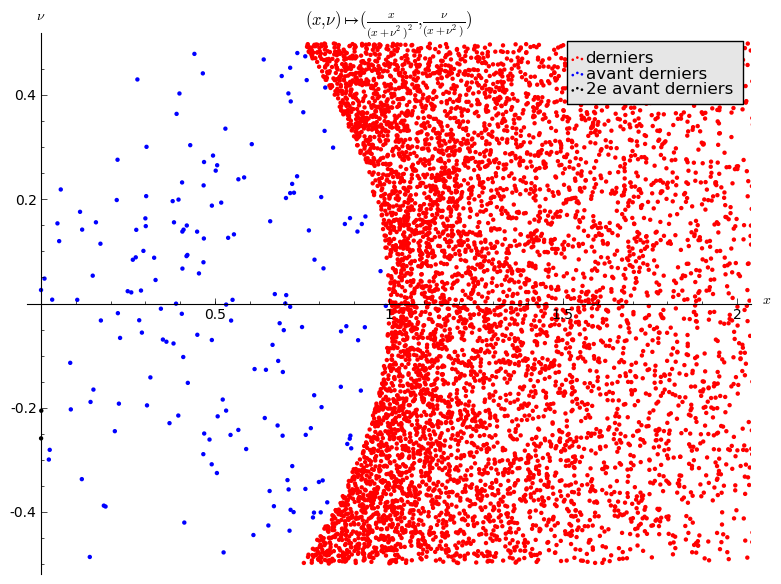

On doit générer plusieurs orbites pour visualiser quelque chose, car les orbites de la fonction sont de taille 1, 2 ou 3 en général avant que la condition d'arrêt soit atteinte. Ici, on génère 10000 orbites (les points initiaux sont choisis aléatoirement et uniformément dans \([0,1]\times[-0.5, 0.5]\). On dessine les derniers points des orbites:

sage: D = plusieurs_orbit(10000)
Note: la plus longue orbite est de taille 3
sage: A = points(D[0], color='red', legend_label='derniers')
sage: B = points(D[1], color='blue', legend_label='avant derniers')
sage: C = points(D[2], color='black', legend_label='2e avant derniers')
sage: G = A + B + C
sage: G.axes_labels(("$x$", r"$\nu$"))
sage: title = r"$(x,\nu) \mapsto (\frac{x}{(x+\nu^2)^2},\frac{\nu}{(x+\nu^2)})$"
sage: G.show(title=title, xmax=2)
/Files/2014/orbit_x_nu.png

Un raccourci pour faire à peu près le même dessin que ci-haut:

sage: draw_plusieurs_orbites(10000).show(xmax=2)

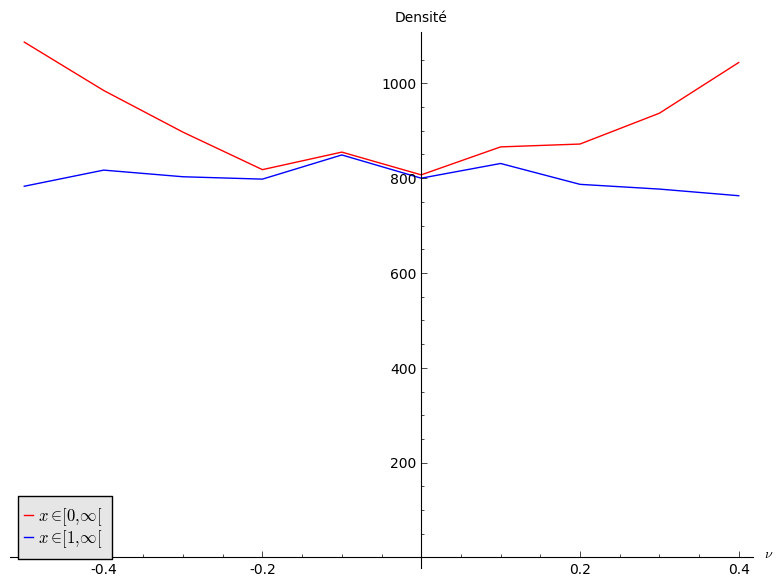

On dessine des histogrammes surperposés de la densité de ces points une fois projetés sur l'axe des \(\nu\):

sage: histogrammes_nu(10000, nbox=10)
/Files/2014/histo_nu.png

Le dessin semble indiquer que la densité non uniforme semble provenir simplement par les points \((x,\nu)\) tels que \(x\leq 1\).

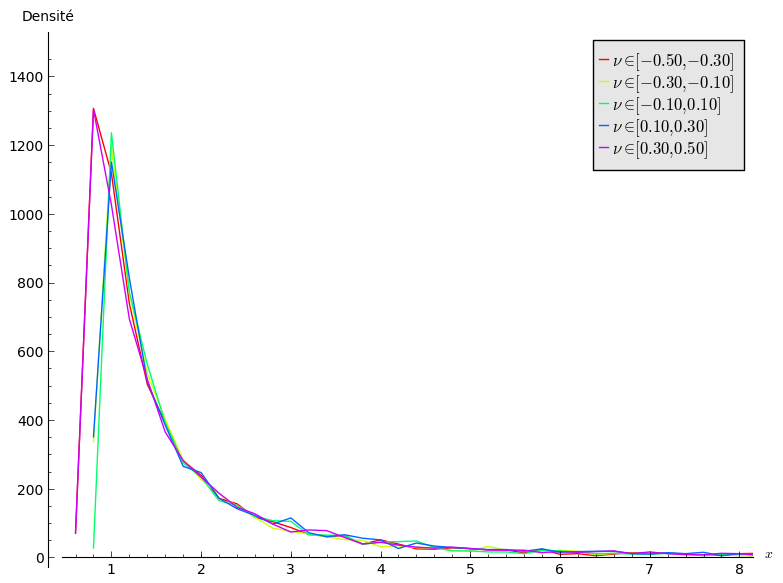

On dessine des histogrammes superposés de la densité de ces points une fois projetés sur l'axe des \(x\) (on donne des couleurs selon la valeur de \(\nu\)):

sage: histogrammes_x(30000, nbox=5, ymax=1500, xmax=8)
/Files/2014/histo_x.png

Le dessin semble indiquer que la densité ne dépend pas de \(\nu\) pour \(x\geq 1\).

Read and Post Comments

My opinion on the USAU Ranking Algorithm

25 janvier 2014 | Catégories: ultimate | View Comments

USA Ultimate recently annonced modifications made to their ranking algorithm for 2014 Season:

Boulder, Colo. (January 17, 2014) – USA Ultimate, the national governing body for the sport of ultimate in the United States, and the organization’s Algorithm Working Group announced today improvements to the algorithm used to calculate rankings in the college and club divisions. The new model, USA Ultimate Top 25 (version 2.0) was devised by the volunteer Algorithm Working Group with guidance from members of the USA Ultimate competition department.

The USA Ultimate Rankings (version 2.0) is fully described here and reactions already started on the ultiworld blog. To me, the modifications are technical improvement and fix some issues of the algorithm. But, in my opinion, the inherent problem of the algorithm remains. Below are my thoughs that I shared on the ultiworld blog.

To me the principal weekness of the actual USAU Ranking algorithm is that it doesn't see the structure of tournaments. For the algorithm used by USAU, a tournament is just a bunch of random games. The algorithm does not see the difference between the saturday morning game and the sunday afternoon final (apart the one day difference which won't affect much). Suppose the two finalist teams of a tournament appear to be in the same pool on the Saturday. The algorithm will consider both games to decide the best. Any human will say the best team is the one who wons the final!

This is why I believe that any Ranking Algorithms in Ultimate should not use the results of games but the results of tournaments. Ultimate frisbee is such a sport that games are played during tournaments and this fact must be considered. The output of a tournament is an ordering of teams (may not be a total order if not all placements games are played) and this is what the algorithm should take as an input.

Moreover, ranking is not only about ranking. It can be a great source of motivation for team to improve (this is why USAU, if they want team to improve, should look into this) but it will do so only if at least two conditions are satisfied : (1) the ranking must be predictable and (2) the ranking must reward what is the most difficult to acheive : winning the final of a tournament. And these are exactly the weaknesses of the actual ranking algorithm whose recursive computation part makes it completely unpredictable and which is blind on the importance of games.

If the ranking system is predictable, then you know in advance that winning a certain game will give you exactly 200 pts for example and this is the amount you need to become #1 in the country, then it will be one more motivation to win the game.

Other sports use such system : tennis ATP ranking, Formula 1, etc. Moreover, it exists in Ultimate as well : Quebec Ultimate Federation is using such a system since more than 5 years to rank Ultimate teams. Team get points according to their final placement. Winners of "Grand Slam" tournament get 1000 pts. Other smaller tournaments gives less points. The final ranking considers the sum of the best three results during the season. For more info, the system is described in this text.

Read and Post Comments

My tmux config file

30 octobre 2013 | Catégories: linux | View Comments

I am often using tmux in the terminal for its habilities to vertically and horizontally split the terminal window sequentially. Below are the configurations that I used given to me by Alexandre Blondin-Massé during a SageFridays at LaCIM in March 2011.

# This File is : ~/.tmux.conf

# use "|" and "-" to do vertical/horizontal splits
# (press CTRL B and then - or |, CTRL D to close it)
unbind %
bind | split-window -h
bind - split-window -v

# use the vim motion keys to move between panes
# (press CTRL B and then h,j,k,l for the move)
bind h select-pane -L
bind j select-pane -D
bind k select-pane -U
bind l select-pane -R

# use vim motion keys while in copy mode
# To copy, press CTRL B and then [, move, space, move, enter.
# To paste, press CTRL B and then ]
setw -g mode-keys vi

I am not using all the capacities I should of tmux. Maybe one day I will try to use this sessions and windows workflow.

Read and Post Comments

« Previous Page -- Next Page »
